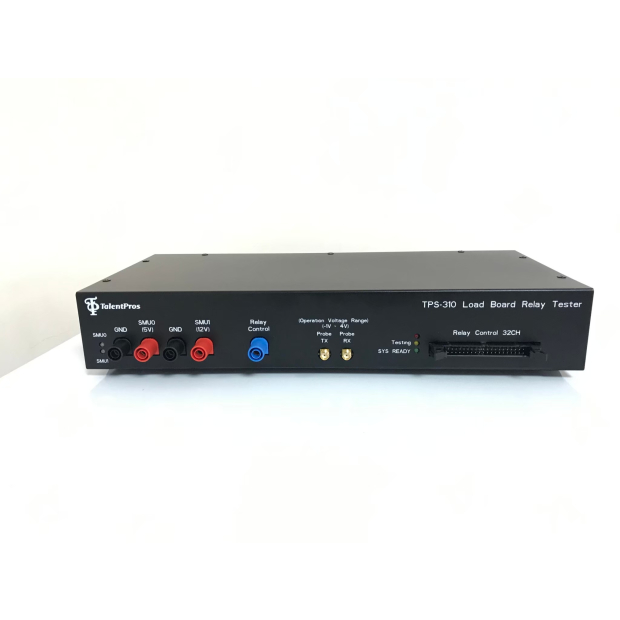

TPS-310 Relay Tester integrates an
RC meter, oscilloscope, square wave generator,
power supply, and proprietary analysis software.

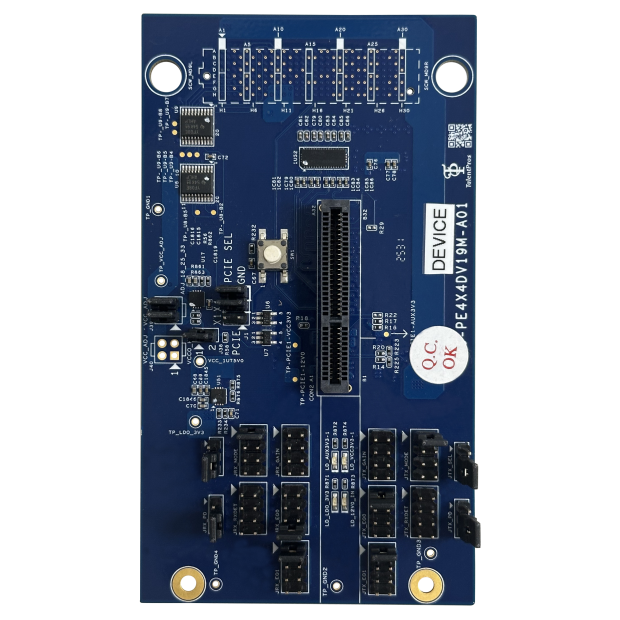

PCIe Gen3 X4(Device) Board

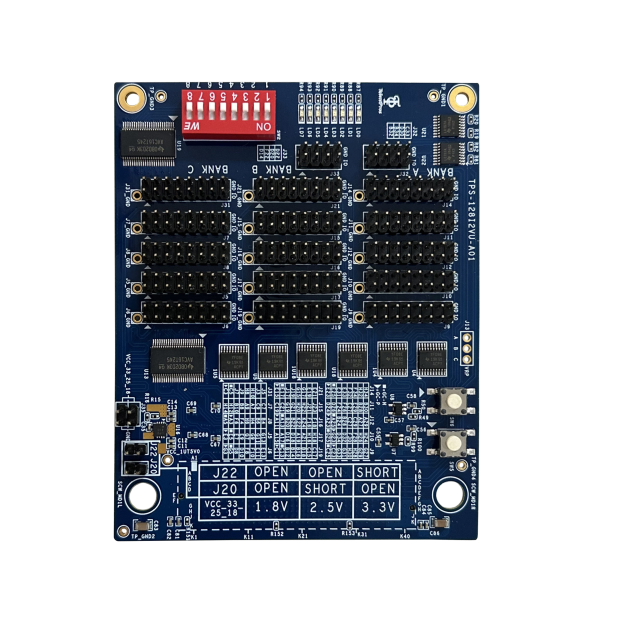

IO Translator Borad

．96*Level Shift IO 1.8V/2.5V/3.3V，
．32 HP I/O，
．DIP Switch 8 PIN，
．Push Button *2，
．LED*8

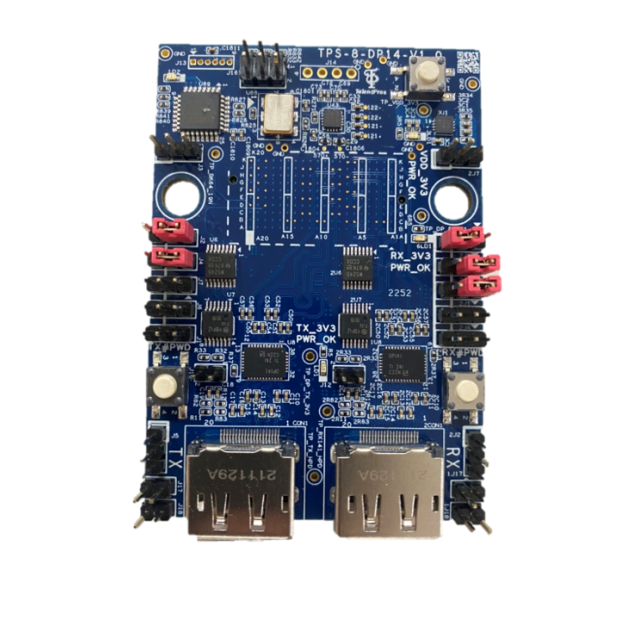

Display Port 1.4 Board

**supports 4 lanes of 1.62Gbps, 2. 7Gbps 5. 4Gbps, and 8. 1Gbps
•Displayport TX
。(One port) - DP1.4_8Gbps
。One port with four lanes
。Control Pins with jumpers
•Displayport RX
。(One port) - DP1.4_ 8Gbps
。One port with four lanes
。Support one RX port at a time
。Control Pins with jumpers

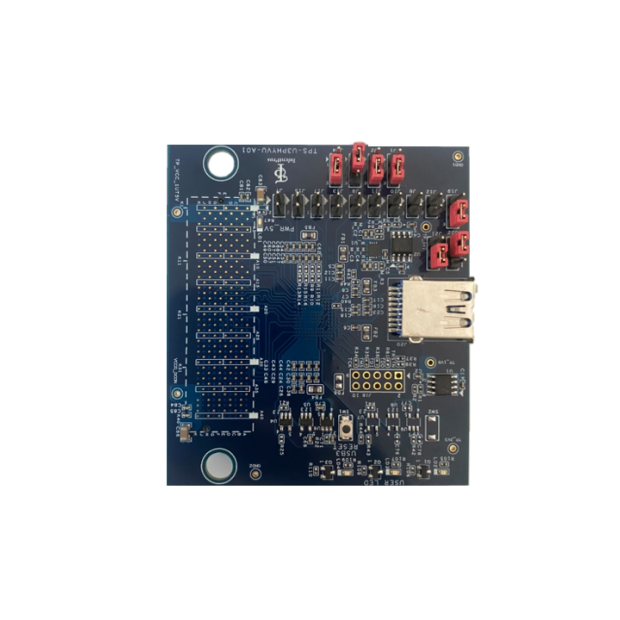

USB3.0 PHY Board TYPE-A (TUSB1310ZAY)

-Power IN: 5V
-Single Port 5.0-Gbps USB3.0: PIPE / ULPI Controller
-Reference clock: crystal 25MHz
-Support Host / Device Mode
-PHY reset button *1
-User LED *3

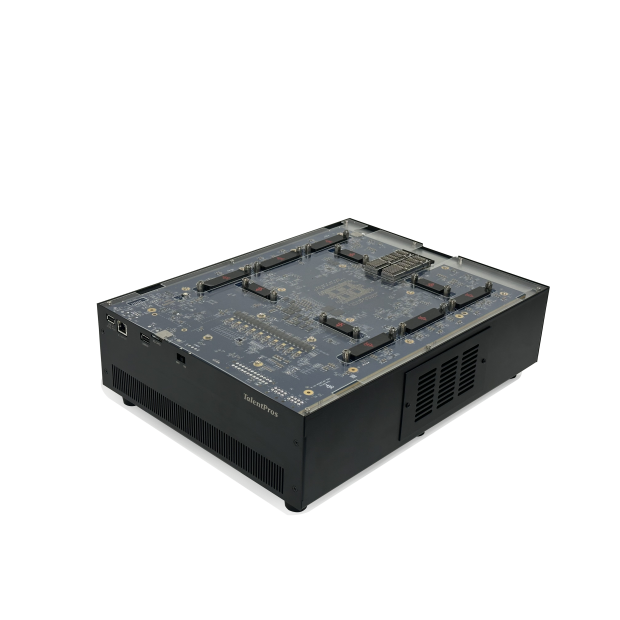

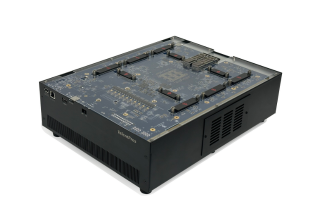

Versal Premium XCVP1902

• System Logic Cells (K):18,507
• DSP Slices:6,864
• Memory (Mb): 858
• Processing System:
Dual-core Arm® Cortex®-A72
Dual-core Arm Cortex-R5F
• The system has 924 XPIOs, 66 HD I/Os and 48 GTYP transceivers on 10 high-speed connectors.
• DDR4 SODIMM * 2 ( Total: 32GB )
• LPDDR4 component *2 (Total: 4GB )
• Small form factor. ( 412 × 312 × 131 mm )

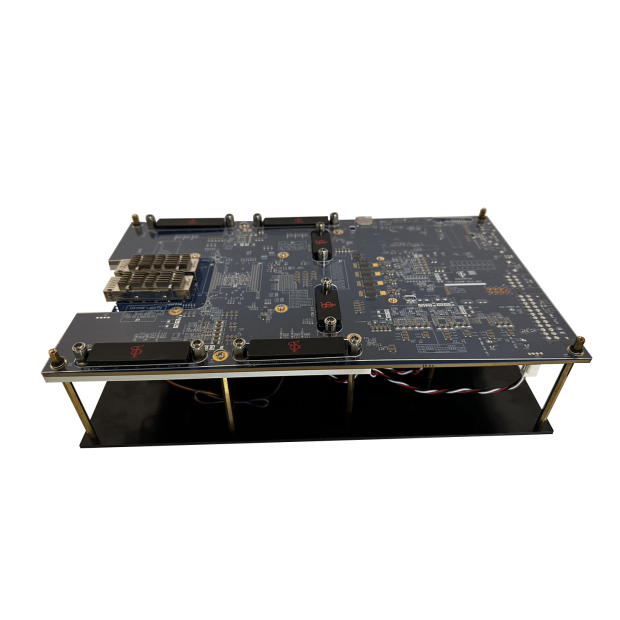

Virtex UltraScale+ XCVU29P

• System Logic Cells (K):3,780
• DSP Slices:12,288
• Memory (Mb): 454.5
• The system has 652 general purpose I/Os , 16 GTY transceivers and 16 GTM(PAM4) transceivers on 6 high-speed connectors and 2 QSFP56(PAM4) Connectors.

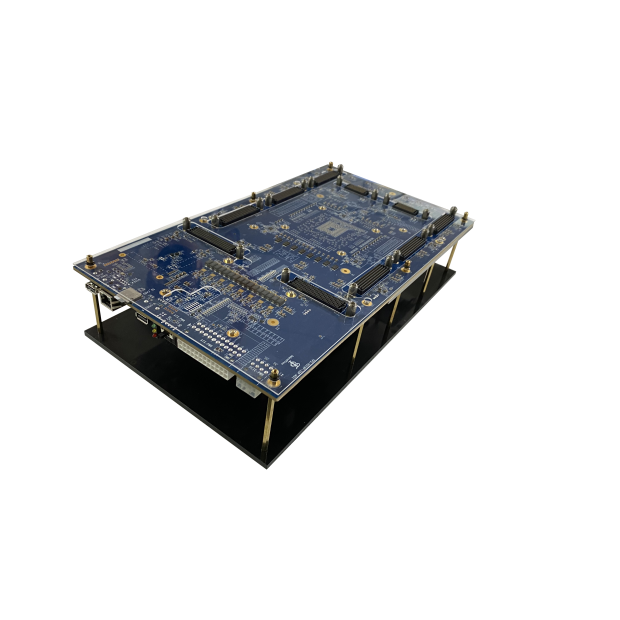

Virtex UltraScale+ XCVU19P

• System Logic Cells (K):8,938
• DSP Slices:3,840
• Memory (Mb): 165.9
• The system has 1280 general purpose I/Os and 24 GTY transceivers on 10 high-speed connectors.
• DDR4 SODIMM * 2 ( Total: 32GB )
