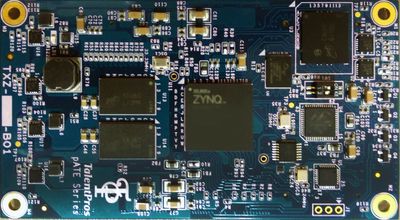

FPGA ARM based SOC module : TXZ-1320
TXZ-1320
- Base on Xilinx Zynq Z-7020-CLG400
- Support 1GB DDR3 & 4GB Emmc
- Logic cell 85K
- PL user io 115 pins
- PS user io 10 pins
- USB 2.0 PHY
- Gigabit Ethernet PHY
- Small form factor: 101 x 57 mm
- 5V~12V power in
- LVDS / mini LVDS pattern Receiver on Board
- 16 Channels Digitizer + DIO
- Digital I/O Controller
- Multi channel Chip scan in/out Test on Board
- Network Access Controller
- Algorithm Accelerator
