KU040 High Performance FPGA Prototyping Platform

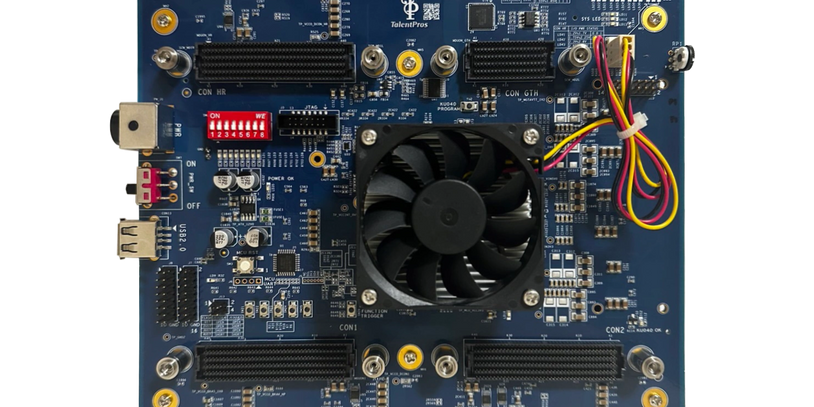

TPS-KU040 High Performance FPGA Platform
- The TPS-KU040 High Performance FPGA Platform is the small form-factor, all-purpose, stand-alone system based on Xilinx’s Kintex UltraScale XCKU040 FPGA(XCKU040-1FFVA1156C).
- The system has 421 general purpose I/Os and 16 GTH transceivers on 4 high-speed connectors.
- Both HP I/O voltage can be adjustedto 1.0V, 1.2V, 1.35V, 1.5V, and 1.8V(Adjustment range: 0.95V ~ 1.85V, resolution: 50mV), it can be selected through the runtime software in GUI with 9 status LEDs on-board to indicate I/O voltage.
- Both HR I/O voltage can be adjusted to1.2V, 1.35V, 1.5V,1.8V, 2.5V and 3.3V (Adjustment range: 1.15V ~ 3V, resolution: 50mV, 3.1V ~ 3.4V, resolution: 100mV), it can be selected through the runtime software in GUI with 3 status LEDs on-board to indicate I/O voltage.
- Multiple FPGA configuration options through JTAG and SPI Flash.
- Utilizing TPS m-View management system technology, users can set peripheral parameters through the USB interface.
