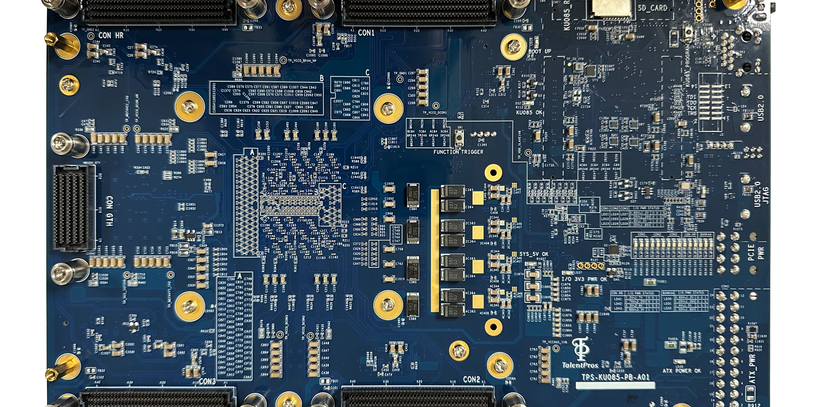

The TPS-KU085-IE+ High Performance FPGA Platform is the small form-factor, all-purpose, stand-alone system based on Xilinx’s Kintex UltraScale XCKU085 FPGA(XCKU085-1FLVA1517E).
The system has 575 general purpose I/Os and 16 GTH transceivers on 5 high-speed connectors.
Both HP I/O voltage can be adjustedto 1V, 1.2V, 1.35V, 1.5V, and 1.8V(Adjustment range: 0.95V ~ 1.85V, resolution: 50mV), it can through runtime software in GUI or change Configuration file in SD Card with 12 statusLEDs on-board to indicate I/O voltage.
Both HR I/O voltage can be adjusted to 1.2V, 1.35V, 1.5V,1.8V, 2.5V and 3.3V(Adjustment range: 1.15V ~ 3V, resolution: 50mV, 3V ~ 3.4V, resolution: 100mV), it can through runtime software in GUI or change Configuration file in SD Card with 4 status LEDs on-board to indicate I/O voltage.
Utilizing TPS m-View management system technology, users can download design file into FPGA and Peripheral Setting remotely through Gigabit Ethernet and USB2.0.
Multiple FPGA configuration options through Ethernet port, USB port, JTAG and micro SD card.
Scalability with TPS-KU085-IE+ High Performance FPGA Platform.
