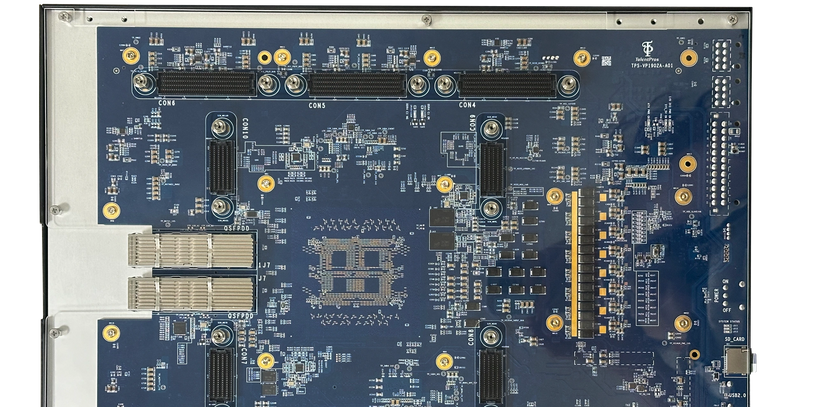

The TPS-VP1902-ID+ High Performance FPGA Platform is the small form-factor, all-purpose, stand-alone system based on Xilinx’s Versal Premium VP1902 FPGA(XCVP1902-2MSEVSVA6865).
The system has 924 XPIOs, 44 HD I/Os and 64 GTYP transceivers on 10 high-speed connectors.
Both XPIO voltage can be adjusted to 1V, 1.2V, 1.35V, and 1.5V (Adjustment range: 1V ~ 1.5V, resolution: 50mV), it can through runtime software in GUI or change Configuration file in SD Card.
Both HD I/O voltage can be adjusted to1.8V, 2.5V and 3.3V(Adjustment range: 1.8V ~ 3V, resolution: 50mV, 3.1V ~ 3.3V, resolution: 100mV), it can through runtime software in GUI or change Configuration file in SD Card .
On-board 2* DDR4 SO-DIMM socket supports up to 32GB memory, Speed 2400Mbps (Use Xilinx MIG IP).
On-board 2* LPDDR4 component supports up to 2GB memory, Speed 3900Mbps (Total 4GB, Use Xilinx NoC IP).
Utilizing TPS m-View management system technology, users can perform remote peripheral settings via Gigabit Ethernet and USB2.0.
Multiple FPGA configuration options through Ethernet port, USB port, JTAG , SD Card and QSPI Flash.
Scalability with TPS-VP1902-ID+ High Performance FPGA Platform.
