VU19P High Performance FPGA Prototyping Platform

---

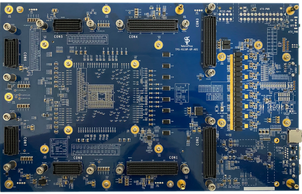

TPS-VU19P-IDM+ High Performance FPGA Platform

TPS-VU19P-IDM+ High Performance FPGA Platform

TPS-VU19P-IDM+ High Performance FPGA Platform

•  The system has 1280 general purpose I/Os and 16 GTY transceivers on 8 high-speed connectors.
• On-board 2* DDR4 SO-DIMM socket supports up to 16GB memory, Speed 2400Mb/s (Use Xilinx MIG IP).
• Total I/O Pins = 1232 HP I/Os + 48 HD I/Os + 16 GTY + 274 HP I/Os for 2* On-board DDR4 SO-DIMM socket.

深入瞭解

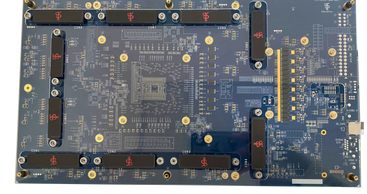

TPS-VU19P-G+ High Performance FPGA Platform

TPS-VU19P-IDM+ High Performance FPGA Platform

TPS-VU19P-IDM+ High Performance FPGA Platform

•  The system has 712 general purpose I/Os and 48 GTY transceivers on 8 high-speed connectors.
• Total I/O Pins = 616 HP I/Os + 96 HD I/Os + 48 GT

深入瞭解

TPS-VU19P-GD+ High Performance FPGA Platform

TPS-VU19P-IDM+ High Performance FPGA Platform

TPS-VU19P-GD+ High Performance FPGA Platform

•  The system has 712 general purpose I/Os and 48 GTY transceivers on 8 high-speed connectors.
• On-board 2* DDR4 SO-DIMM socket supports up to 16GB memory, Speed 2400Mb/s (Use Xilinx MIG IP).
• Total I/O Pins = 616 HP I/Os + 96 HD I/Os + 48 GTY+ 274 HP I/Os for 2* On-board DDR4 SO-DIMM socke

深入瞭解
