VU29P High Performance FPGA Prototyping Platform

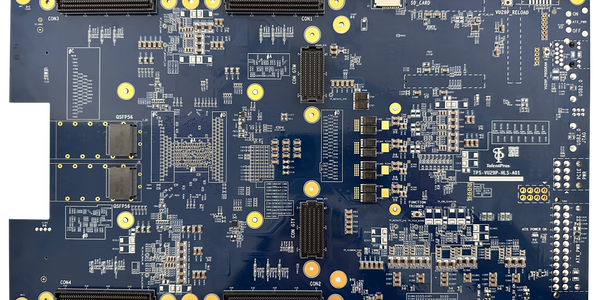

The TPS-VU29P-HLS High Performance FPGA Platform is the small form-factor, all-purpose, stand-alone system based on Xilinx’s Virtex UltraScale+ XCVU29P FPGA(XCVU29P-2FIGD2104E).
The system has 652 general purpose I/Os , 16 GTY transceivers and 16 GTM(PAM4) transceivers on 6 high-speed connectors and 2 QSFP56(PAM4) Connectors.
Both HP I/O voltage can be adjusted to 1V, 1.2V, 1.35V, 1.5V, and 1.8V(Adjustment range: 1V~1.85V, resolution: 50mV), it can through runtime software in GUI or change Configuration file in SD Card to indicate I/O voltage.
Utilizing TPS m-View management system technology, users can download design file into FPGA and Peripheral Setting remotely through Gigabit Ethernet and USB2.0.
Multiple FPGA configuration options through Ethernet port, USB port, JTAG and micro SD card.
Scalability with TPS-VU29P-HLS High Performance FPGA Platform.
- Expand multi-platform with Bridge Card.

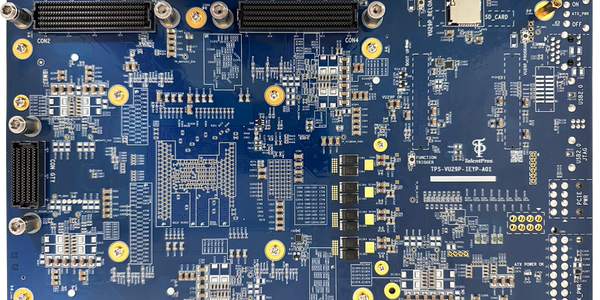

The TPS-VU29P-IE+ High Performance FPGA Platform is the small form-factor, all-purpose, stand-alone system based on Xilinx’s Virtex UltraScale+ XCVU29P FPGA(XCVU29P-2FIGD2104E).
The system has 627 general purpose I/Os and 16 GTY transceivers on 5 high-speed connectors.
Both HP I/O voltage can be adjusted to 1V, 1.2V, 1.35V, 1.5V, and 1.8V(Adjustment range: 1V ~ 1.85V, resolution: 50mV), it can through runtime software in GUI or change Configuration file in SD Card with 15 status LEDs on-board to indicate I/O voltage.
Utilizing TPS m-View management system technology, users can download design file into FPGA and Peripheral Setting remotely through Gigabit Ethernet and USB2.0.
Multiple FPGA configuration options through Ethernet port, USB port, JTAG and micro SD card.
Scalability with TPS-VU29P-IE+ High Performance FPGA Platform.
- Expand multi-platform with Bridge Card.
